Product Information
Product Description

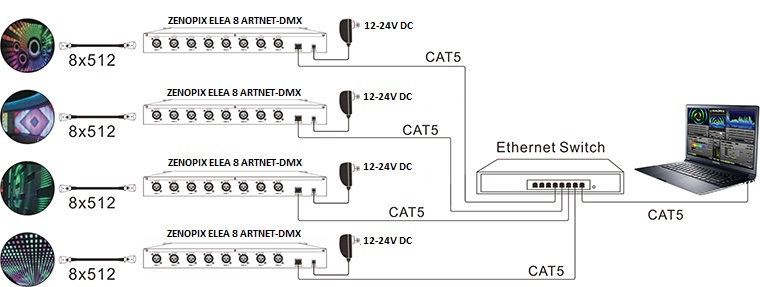

The Zenopix ELEA 8 TB ArtNet DMX Controller is an ideal solution for LED lighting and stage control systems, thanks to its support for the DMX-512 protocol. The device receives Art-Net packets over Ethernet and converts them into DMX-512 output for lighting fixtures.
Equipped with a high-speed ARM processor, Zenopix ELEA 8 delivers stable and reliable performance. With 8 independent DMX output ports, it provides powerful and seamless control for large-scale lighting projects. Its web interface support ensures easy setup and configuration, making it user-friendly and efficient.
Features:
- Ethernet-based ArtNet DMX Control System
- RJ45 network interface
- UDP protocol support
- Fully compatible with the Art-Net standard protocol
- 8 independent DMX512 output ports (universes)
- Supports 1024 channels per port
- Up to 8192 total DMX channels
- Terminal block DMX output connections
- USB-B input and Ethernet connectivity
- 2 status LEDs and a factory reset button
- Easy access and configuration via web interface
- Widely used in LED dot matrix, stage lighting, and Art-Net-based effect lighting systems
- With its high performance, reliability, and scalability, Zenopix ELEA 8 is the perfect choice for professional lighting control and large-scale stage applications.
| Power Supply | 12V – 24V DC (Terminal Connection Socket) |
| Power Consumption | < 5 W (Under Normal Operation) |
| Network Protocol | Art-Net |
| DMX512 | 8 x 1024 DMX Channels / Universe Output |
| Output Ports | 3-Pin, 5.08 Terminal |
| Ethernet | 1x RJ45, 10/100MBit/s |
| USB | 1x Port, USB 2.0, Type-B Socket |
| Signal Indicators | 2 Status LEDs |
| Enclosure | Plastic |

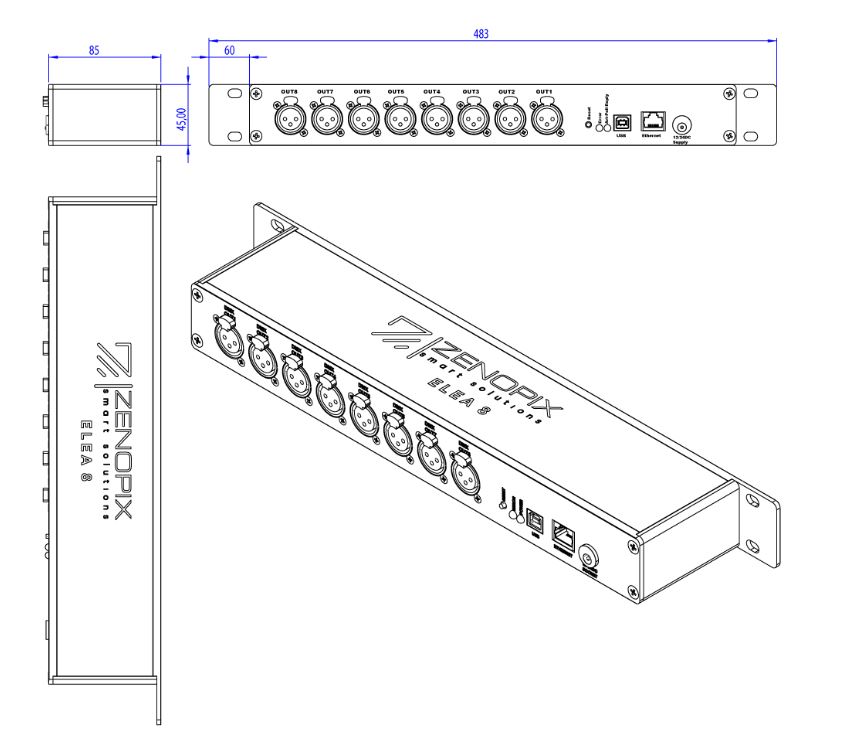

| Dimensions | Cabinet Mounting: 480 x 83 x 44 mm |
| Temperature and Humidity | Operating: -15°C – 65°C / 20% RH |
| Storage: -25°C – 75° C / 70% RH | |
| Protection Class | IP-20 |
| Mounting Type | Wall or Cabinet Mount |
1. Please do not install this control device in areas prone to lightning, intense magnetic fields, or high voltage.
2. Ensure correct connections to reduce the risk of component damage due to short circuits and fire.
3. Always ensure that you mount this unit in an area with adequate ventilation to maintain appropriate temperature.
4. Verify if the voltage and power adapter are suitable for the controller.
5. Do not connect cables while power is on; ensure correct connections before powering on and check for any short circuits with the device.
6. Please refrain from unauthorized repairs. In case of issues, contact the supplier.
7. This guide is specific to this model and subject to updates without prior notice.
